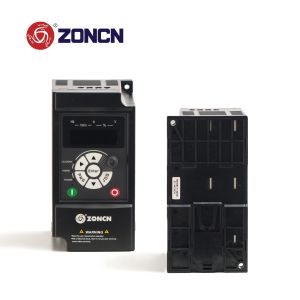

Single Phase Three Phase Input VFD 220v 380v Variable Frequency Drives 3HP 5HP 7HP 10HP
ZONCN Inverter Introduction
Mini inverter, V/F control, cheap price inverter--- ZONCN NZ100 series;
Economical vector control inverter---ZONCN NZ200 series;
IP65 high protection inverter---ZONCN Z5000-BF inverter
For general purpose industrial application, support EtherCAT communication---ZONCN Z2000 Inverter;
For general purpose industrial application, support Profinet communication---ZONCN T9000 Inverter;
High performance inverter, open and close loop vector control, support Profibus communication---ZONCN Z8000 Inverter.
... ...
ZONCN focus on producing inverter for more than 19 years, we have developed different series which can be used in most of the industrial solutions.
ZONCN T9000 Inverter Model
| ZONCN T9000 Inverter Model | Input Voltage (V) | Rated output power(kW) | Rated input current(A) | Rated output current(A) | Motor Power (KW) |
| T9200-0R4G | 1PH AC 220V±15% | 0.4 | 5.4 | 2.5 | 0.4 |
| T9200-0R75G | 0.75 | 7.2 | 5 | 0.75 |
| T9200-1R5G | 1.5 | 10 | 7 | 1.5 |
| T9200-2R2G | 2.2 | 16 | 11 | 2.2 |
| T9200-3R7G | 3.7 | 17 | 16.5 | 3.7 |
| T9200-5R5G | 5.5 | 26 | 25 | 5.5 |
| T9200-7R5G | 7.5 | 35 | 32 | 7.5 |
| T9400-0R4G | 3PH AC 380V±15% | 0.4 | 3.4 | 1.2 | 0.4 |
| T9400-0R75G | 0.75 | 3.8 | 2.5 | 0.75 |
| T9400-1R5G | 1.5 | 5 | 3.7 | 1.5 |
| T9400-2R2G | 2.2 | 5.8 | 5 | 2.2 |
| T9400-3R7G/5R5P | 3.7/5.5 | 10/15 | 9/13 | 3.7/5.5 |
| T9400-5R5G/7R5P | 5.5/7.5 | 15/20 | 13/17 | 5.5/7.5 |
| T9400-7R5G/11P | 7.5/11 | 20/26 | 17/25 | 7.5/11 |
| T9400-11G/15P | 11/15 | 26/35 | 25/32 | 11/15 |
| T9400-15G/18.5P | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| T9400-18.5G/22P | 18.5/22 | 38/46 | 37/45 | 18.5/22 |
| T9400-22G/30P | 22/30 | 46/62 | 45/60 | 22/30 |
| T9400-30G/37P | 30/37 | 62/76 | 60/75 | 30/37 |
| T9400-37G/45P | 37/45 | 76/90 | 75/90 | 37/45 |
| T9400-45G/55P | 45/55 | 92/113 | 90/110 | 45/55 |
| T9400-55G | 55 | 113 | 110 | 55 |
| T9400-75G/90P | 75/90 | 157/180 | 150/176 | 75/90 |
| T9400-90G/110P | 90/110 | 180/214 | 176/210 | 90/110 |
| T9400-110G/132P | 110/132 | 214/256 | 210/253 | 110/132 |
★Please contact us directly for inverter powers above 110kw
|
Nameplate Description
Inverter Specification
| Item | Description |
| Basic function | Control Mode | VF control |
| Sensorless flux vector control(SVC) |
| Close-loop vector control(FVC)(Above 3.7kW) |
| Maximum frequency | 0~600Hz |
| Carrier frequency | 0.5kHZ——8kHz |
| The carrier frequency is automatically adjusted based on the load features |
| Input frequency resolution | Digital setting:0.01Hz |
| Analog setting: Maximum frequency x 0.025% |
| Start torque | G Type:0.5Hz/150%(SVC) |
| P Type:0.5Hz/100% |
| Speed range | 1:100 (SVC) |
| Speed stability accuracy | ±0.5%(SVC) |
| Overload capacity | G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current. |
| Torque boost | Auto-boost ; |
| Customized boost: 0.1%~30.0% |
| V/F Curve | Straight-line V/F curve |
| Multi-point V/F curve |
| N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square) |
| V/F separation | 2 types: complete separation; half separation |
| Ramp Mode | Straight-line ramp. |
| Four groups of acceleration/deceleration time with the range of 0.00`6500.0s |
| DC braking | DC braking frequency:0.00Hz~Maximum frequency |
| Braking time:0.0s~36.0s |
| Braking action current value:0.0%~100.0% |
| JOG control | JOG frequency range:0.00Hz~50.00Hz |
| JOG acceleration/deceleration time: 0.0s~6500.0s. |
| Simple PLC,Multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of terminal states |
| Onboard PID | It realizes process-controlled closed loop control system easily |
| Auto voltage regulation(AVR) | It can keep constant output voltage automatically when the mains voltage |
| Overvoltage/overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive. |
| Torque limit and control | It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be |
| implemented in the FVC mode. |
| | Support for multiple PG card | Support for differential input PG card, resolver PG card ,rotating transformer PG card |
FAQ
Q1: How to choose the right inverter series for my application?
A: You can tell us your application and requirements, we can recommend you the right series and models.
Q2. Can you customize for my logo?
A: no problem, we can print your logo on our VFD inverter drive if your quantity can meet the MOQ.
Q3. Do you have agent in the international market?
A: Yes, we have. ZONCN inverter have agent in Korea, Myanmar,Brazil, Russia, Turkey, Colombia, Argentina, Algeria, Kenya, etc.
Q4. What is your warranty time?
A: Our warranty is 18 months after delivery.
